Synchronise EZ-TRAC™ to IMDEXHUB-IQ™

The REFLEX EZ-TRAC™ solution includes the ability to review and approve data for dip, azimuth and direction on IMDEXHUB-IQ™ once the survey data is uploaded remotely. The upload process synchronises collected survey data from the REFLEX EZ-TRAC™ App on the tablet to IMDEXHUB-IQ™.

Initially, Drillhole survey requests are downloaded from IMDEXHUB-IQ™ and include on-screen data for:

• Project Name
• Drillhole Name
• Latitude
• Longitude

Field Technicians then carry out the survey. When surveys are completed, the user simply requires an internet connection (either Wi-Fi or a mobile data network) and then taps the Sync button.

To synchronise Drillhole data:

1. Ensure the device is connected to the internet via:
   1. Wireless network
   2. Mobile Data Network

   It is typical to already be logged in after completing a survey. However, if syncing to IMDEXHUB-IQ™ long after, login is required.

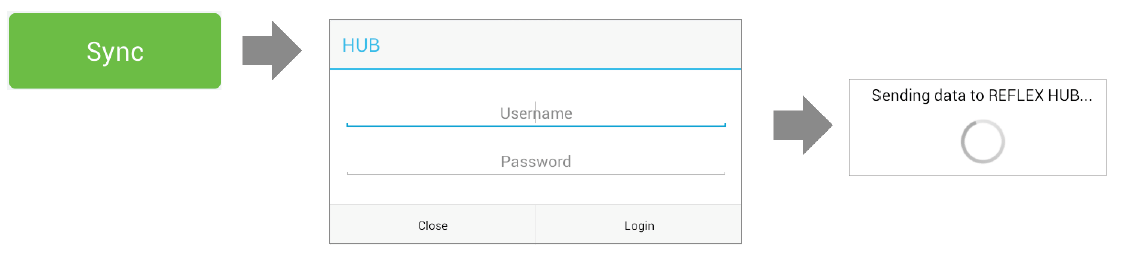

2. Press Sync to login and enter Username and Password.

3. Tap Login.

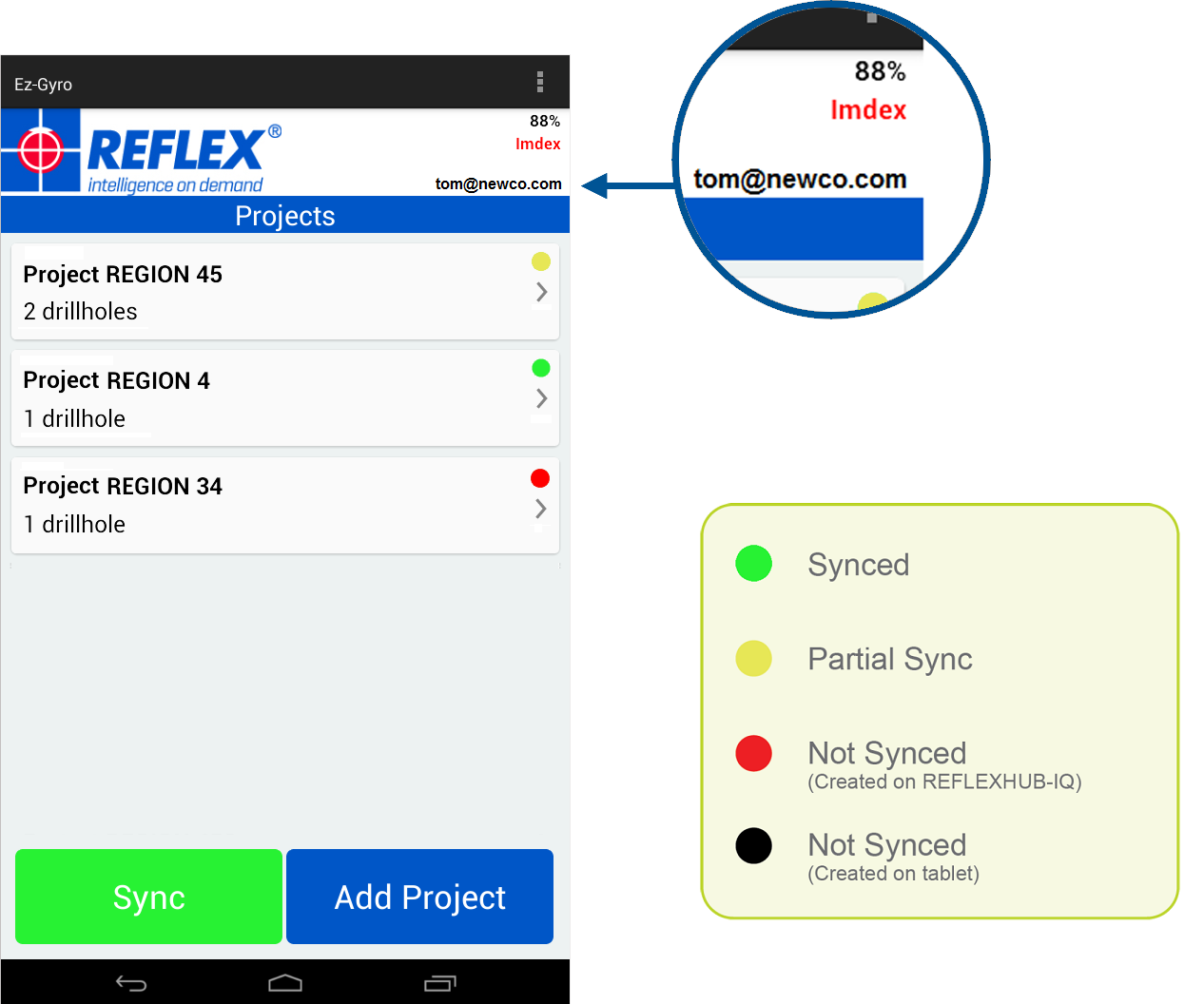

4. The Projects screen displays, and the username is displayed.

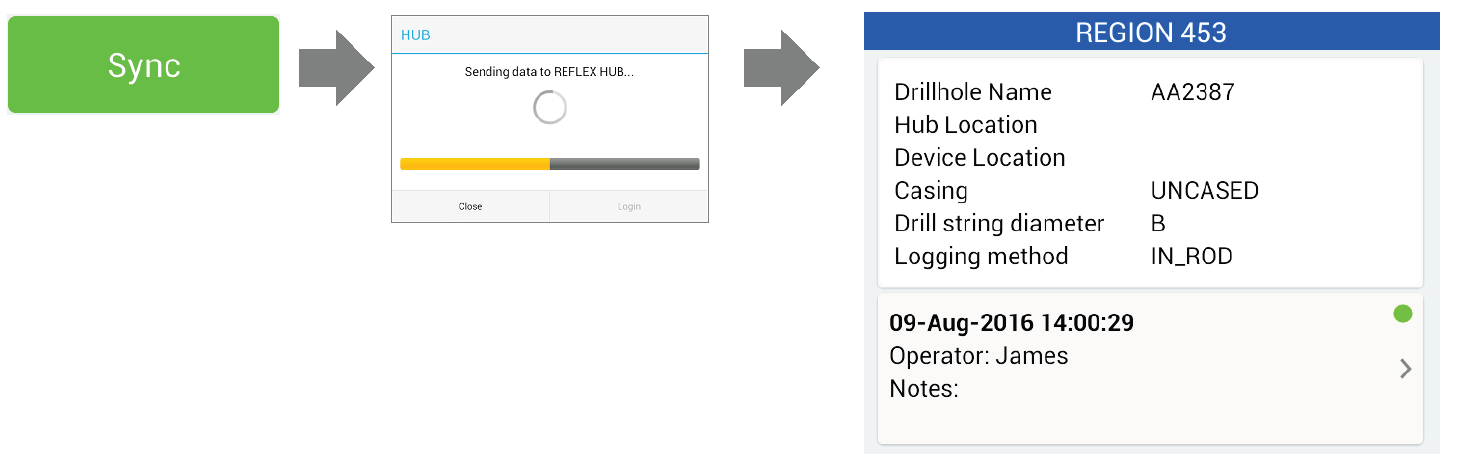

5. If already logged in, tap Sync. The app automatically uploads survey data to IMDEXHUB-IQ™.

6. Synced Drillholes display a green dot.

When you return the device to REFLEX™ all data on the device will be lost. Please ensure you have synchronised all required surveys to IMDEXHUB-IQ™ prior to sending back the device.

For more information on operating the REFLEX EZ-TRAC™ tool and the controlling app, please refer to the tool user manual.
